DC-DC Converters
Product Details:
Product Description

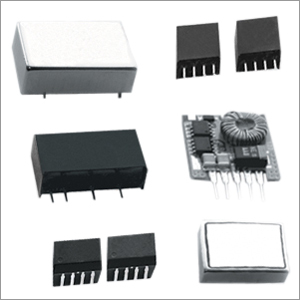

DC-DC Convertor
Choose from our range of low powered DC DC Converters for applications including distributed power systems, mixed analog/digital subsystems, portable test equipments, local power networks and battery backed systems
Salient features of our converters include high isolation, high efficiency, ultra-wide (4:1) input voltage ranges, SMT technology, cUL/UL 1950 & EN60950 safety approvals, RoHS compliance and a 2 year warranty.
Output | Input Voltage (VDC) | Output Voltage (VDC) | I/O | Available packages | |
| Nominal | Range | ||||
| 1 | 5, 12, 24 | + 10% | 3.3, 5, 9, 12, 15,+5, +9, +12, +15 | Up to 6000 | 7 Pin SIP; 4 Pin SIP; 8 Pin SMD; 10 Pin SMD; 12 Pin SMD |
| 1.5 | 5, 12, 15 | +10% | 5, 12, 15,5,+12, +15 | 8000 | 24 Pin DIP |
| 2 | 5, 12, 24; 48 | +10% | 3.3, 5, 12, 15, +5, +12, +15 | Upto 5600 | 7 Pin SIP; |
| 2-3 | 5, 12, 24,48 | 2 : 1 | 3.3, 5, 12, 15,+5, +12, +15 | Up to 300 | 24 Pin DIP |
| 3 | 5, 12, 20, 24, 48 | 2 : 1 | 5, 12, 15, +12, +15 | Up to 4200 | 24 Pin DIP/SMD |
| 3-4 | 24, 48 | 4 : 1 | 3.3, 5, 12, 15 , +5, +12, +15 | 1500 | 24 Pin DIP |
| 5-6 | 5, 12, 24, 48 | 2 : 1 | 3.3, 5, 12, 15 , +5, +12, +15 | 1500 | 24 Pin DIP |
| 10 | 5, 12, 24, 48 | 2 : 1 | 2.5, 3.3, 5, 12, 15, 24 , +5, +12, +15 | 1500 | 1" x 2" x 0.4" |
| 15 | 12, 24, 48 | 2 : 1 | 3.3, 5, 12, 15 , +12, +15 | 1500 | 1" x 2" x 0.4" |
| 20 | 12, 24, 48 | 2 : 1 | 3.3, 5, 12, 15 , +12, +15 | 1500 | 1" x 2" x 0.4" |
| 25-30 | 12, 24, 48 | 2 : 1 | 2.5, 3.3, 5, 12, 15 , +12, +15 | 1500 | 1.6" x 2" x 0.4" |
